The problem

My waste bin broke after only a few months of use. Rather than buy a new bin which would probably break again, I decided to design and print this repair part.

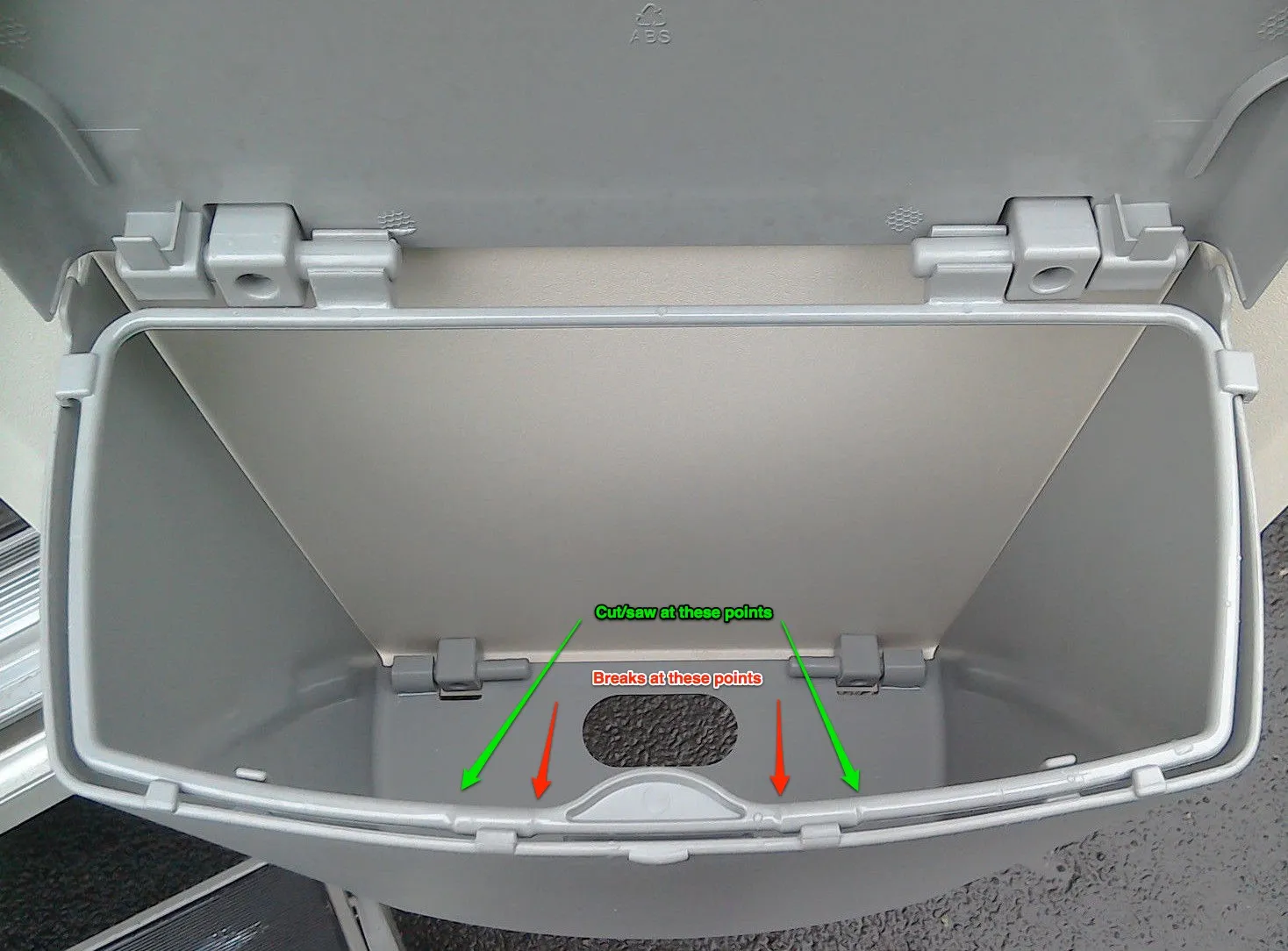

Location of the break on the waste bin frame
Photo showing location of break

Design & CAD

The part was designed in Fusion 360, with the design kept simple to allow ease of printing and fitting.

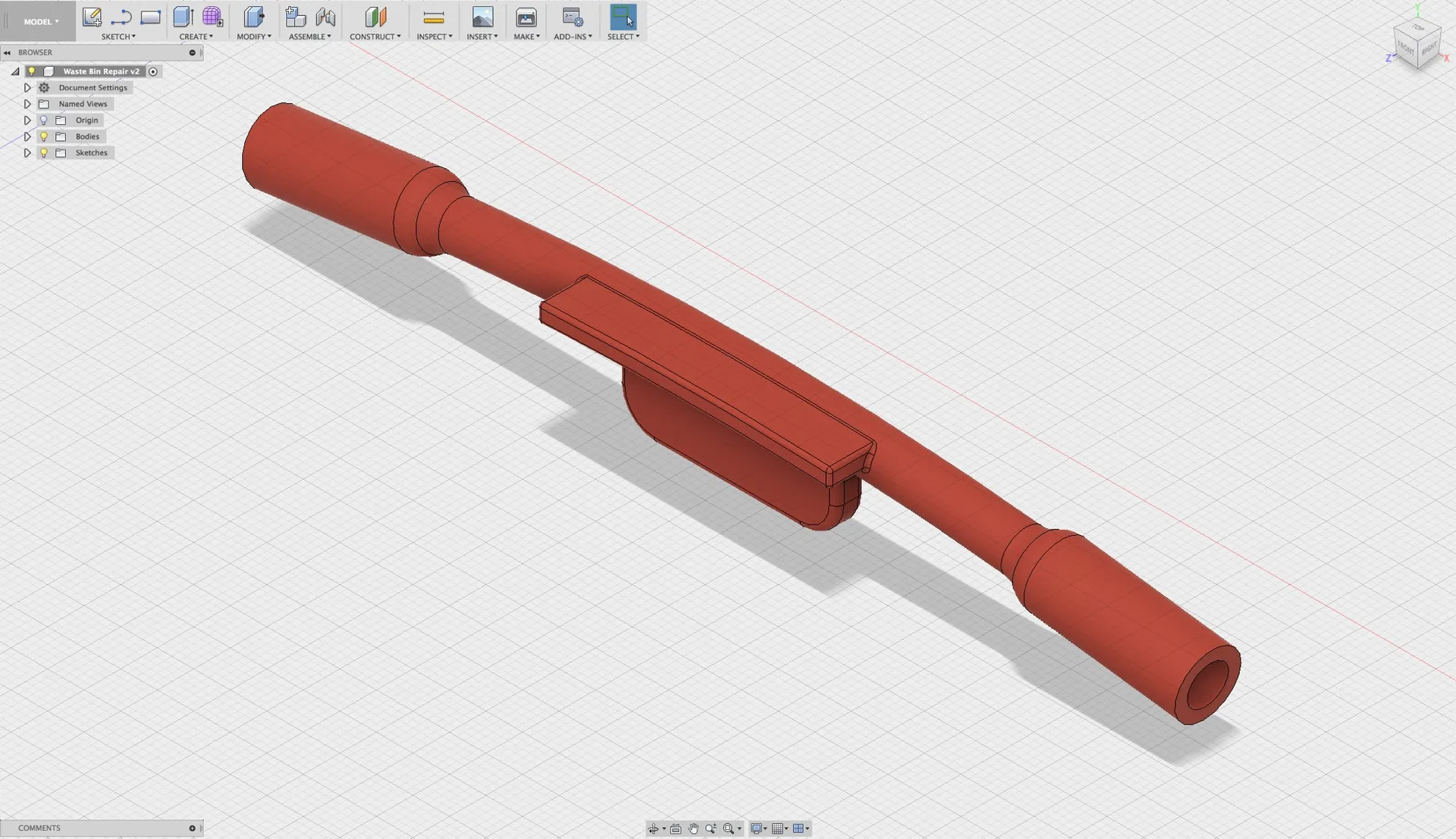

Fusion 360 3D view of the repair part
Fusion 360 3D view

Build notes

The photographs below should explain most of it. I fitted this part eight years ago and it's still performing with no issues. The part is designed to be a push-fit onto the legs of the frame — my own print came out accurate enough to push-fit straight on, with no filing of the holes or glue required. Depending on the accuracy of your printer, filing the holes or adding a little glue may be needed.

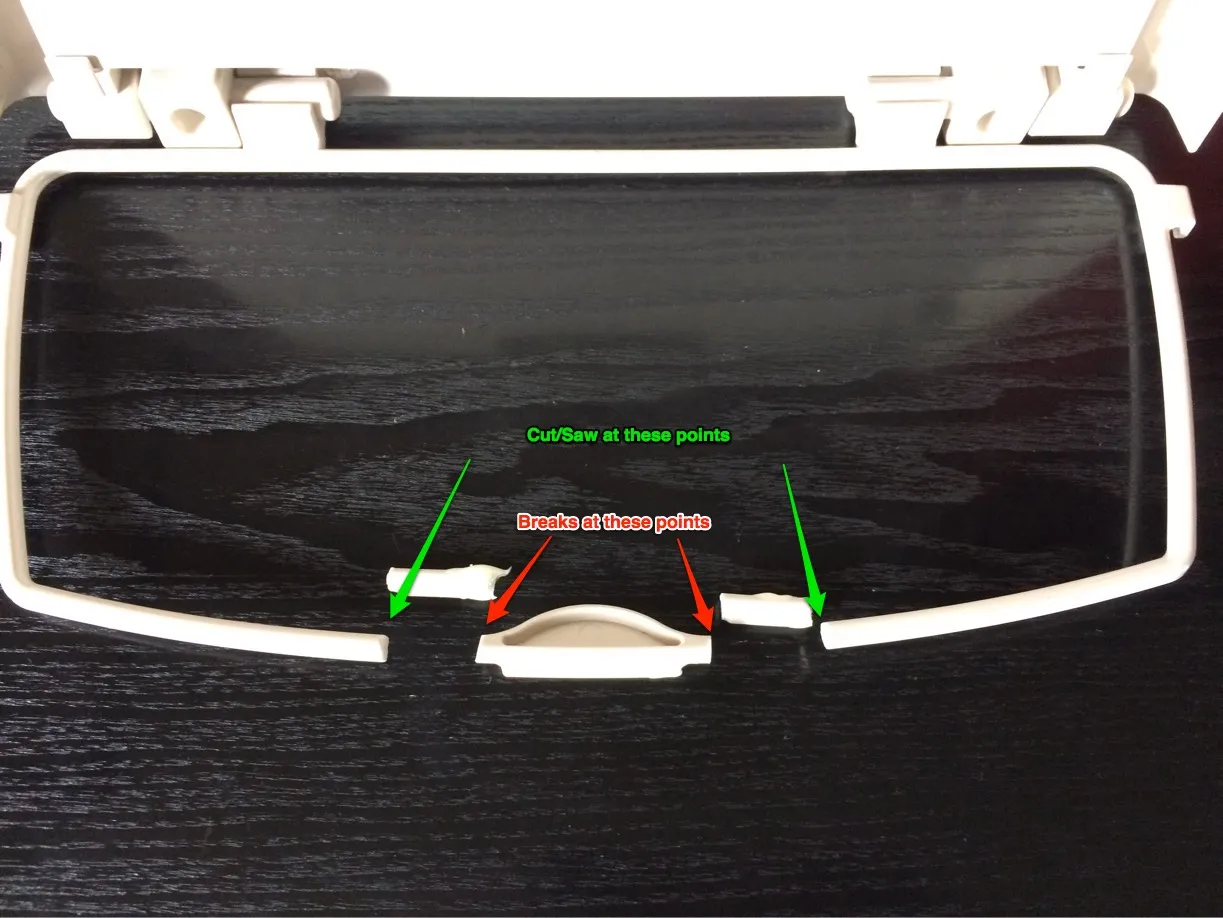

Where to cut the excess material
Photo showing where to cut excess material

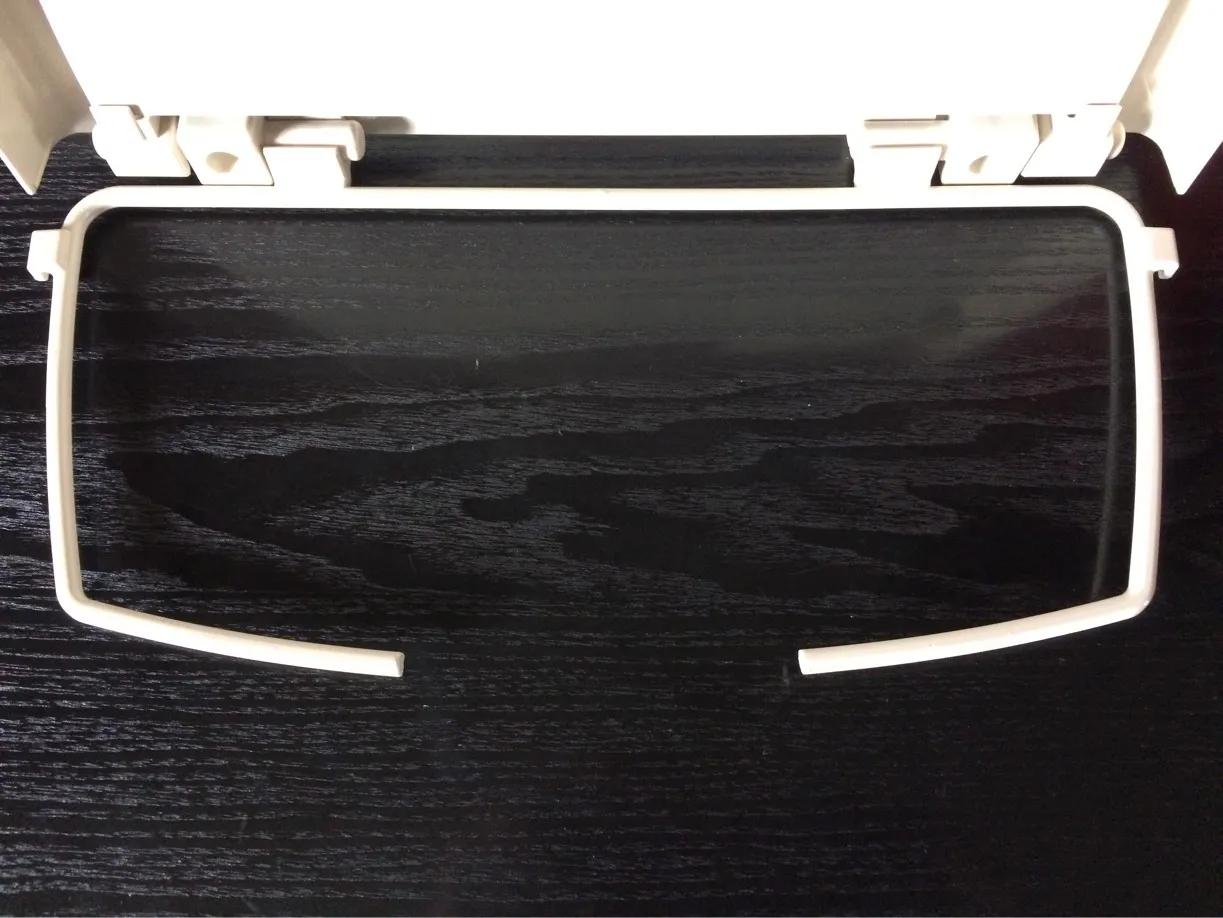

Frame after cutting and trimming
Photo showing frame after cutting/trimming

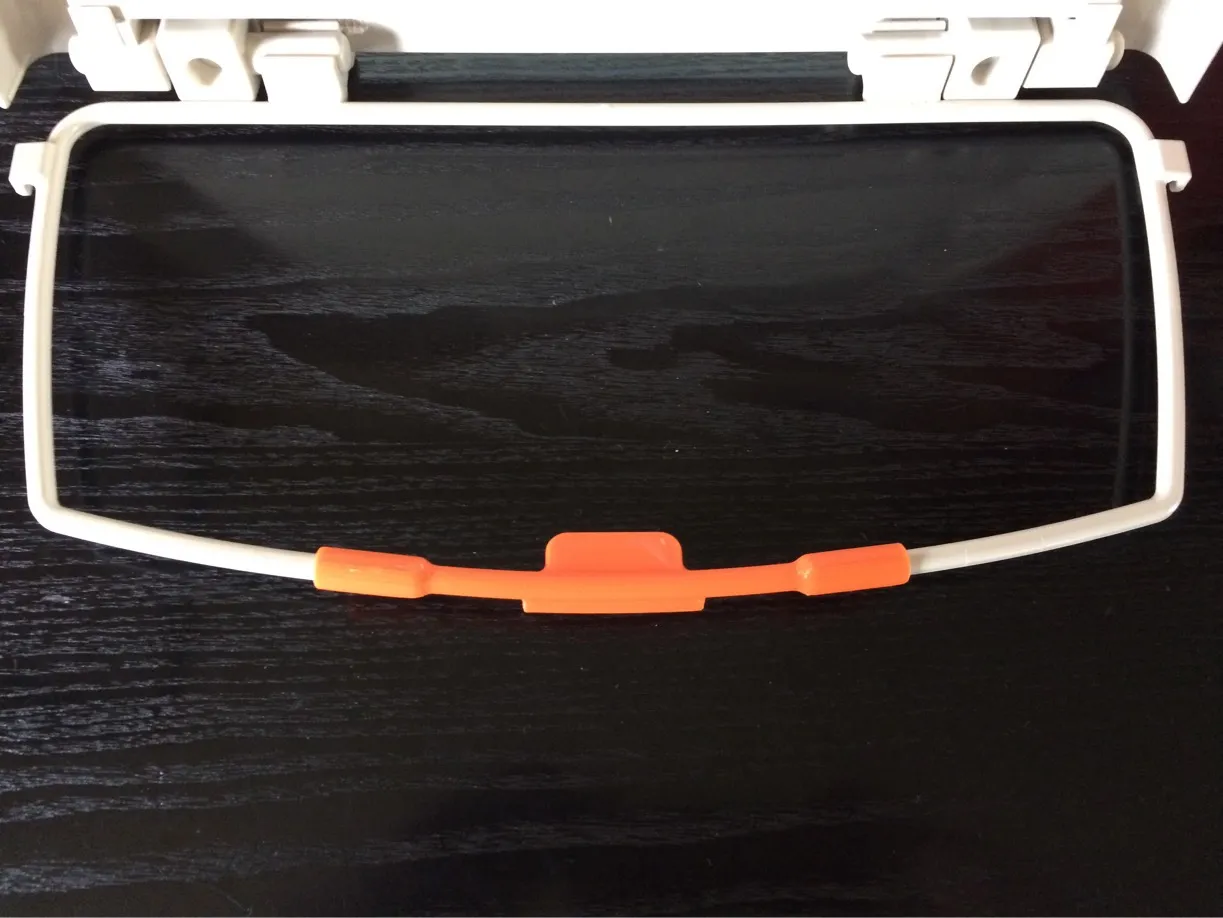

Bench test of the repair part
Bench test of repair part
Completed repair ready for use
Completed repair ready for use

The part was printed in PETG with supports, 4 perimeters, and 40% infill.

Print on the bed showing supports
Print on bed showing supports
Print after post-processing
Print after post processing
