The problem

The caravan had no feet to allow use on softer ground, so these were designed to offer a novel solution to the problem.

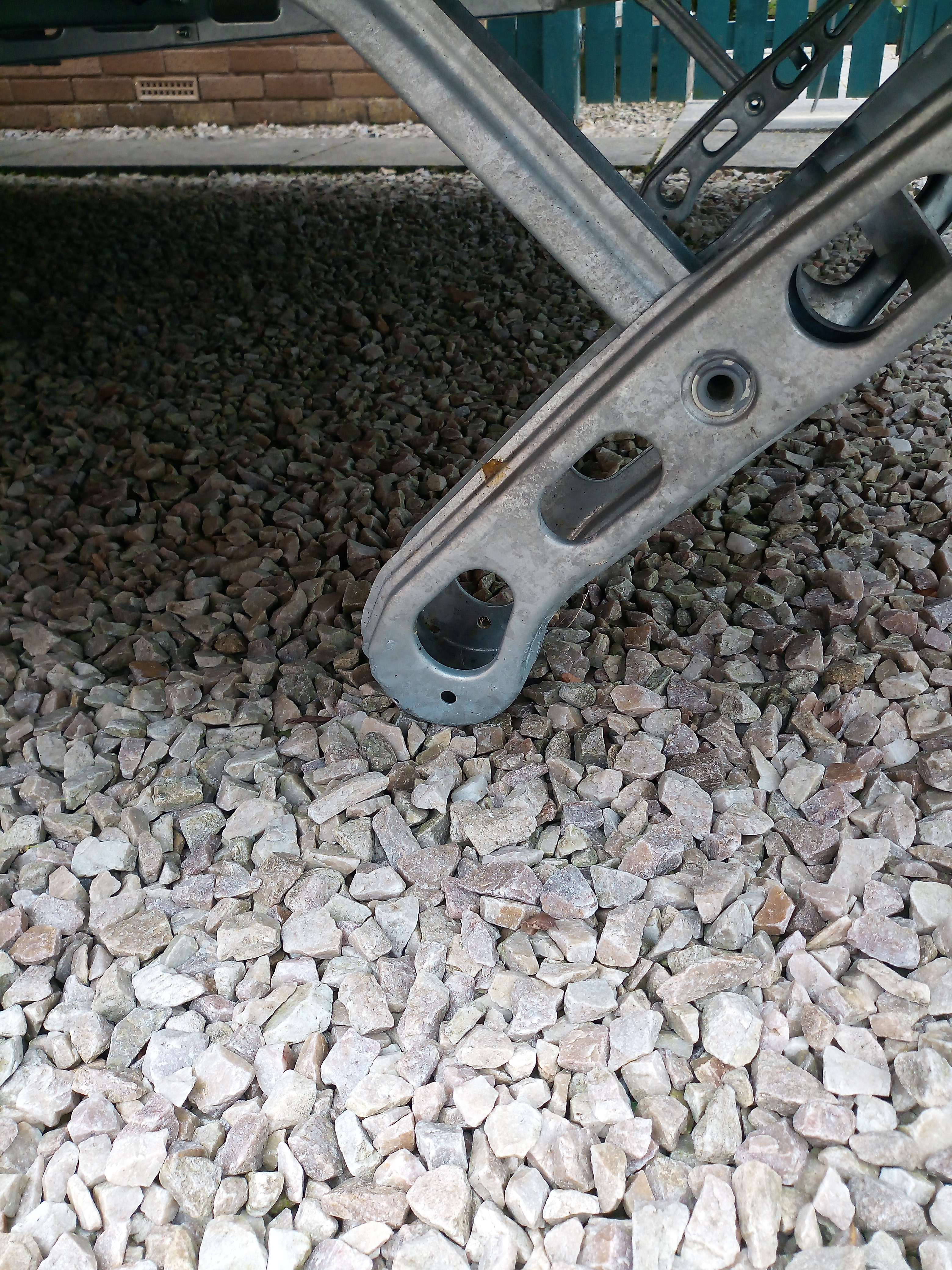

Standard supplied corner steady, with no foot fitted
Standard supplied corner steady

Design & CAD

I came across this design concept on Printables (which itself credits a Thingiverse author), but the original didn't fit my particular corner steadies, so I redesigned it in Fusion 360 and added some extra features.

Fusion 360 render of the caravan foot
Fusion 360 rendered image

Refer to the AL-KO diagram for the corner steady dimensions — please check these before printing.

AL-KO premium corner steady dimensional drawing
Corner steady dimensional drawing – AL-KO premium corner steady

Build notes

The feet are printed in PETG, 4 perimeters and 40% infill — no post-processing required.

The bushes are printed in eSUN TPE flexible filament, 4 perimeters and 100% infill. Three bush sizes are provided since I found the caravan's steadies varied slightly in width due to manufacturing tolerances — print a few of each and test-fit as you go.

Complete set of feet including the different bush sizes
Complete set of feet including different bush sizes

Hardware required:

  • 4 x M8 x 160mm 304 stainless steel fully threaded rod
  • 8 x M8 nyloc nuts
  • 8 x M8 washers
